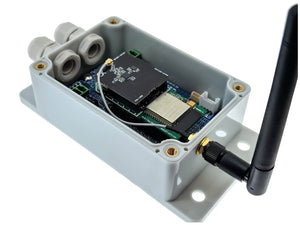

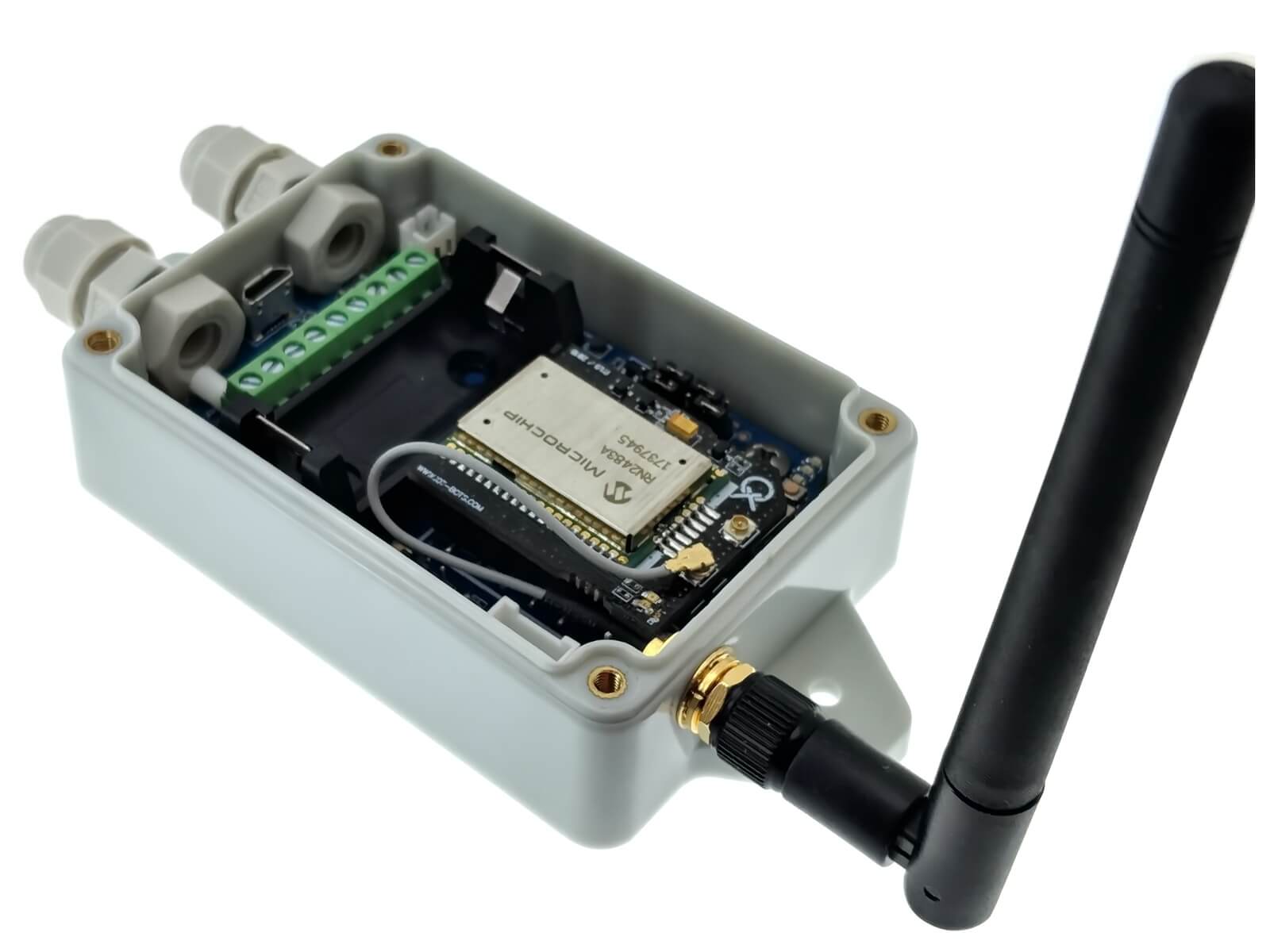

BY-868-02 is external 868MHz Omni-Directional SMA antenna. To be used in wide range of LoRa / Sigfox / ISM applications, like smart energy meters, home security, waste management, etc.
BY-868-02 antenna swivels 90 degrees and rotates 360 degrees for optimal positioning and maximum signal reception and has an integrated SMA Male connector.
Specification:
- Frequency（MHz）： 858-878
- VSWR: ≤ 2
- Gain（dBi）：3
- Power（W）： 50
- Polarization ：Vertical
- Input Impedance（Ω）： 50
- Antenna Length（mm）： 95
- Connector： SMA
- Storage Temperature：-30℃ to+75℃
- Operating Temperature：-30℃ to+75℃
DataSheet: https://github.com/iotbotscom/docs/blob/main/AddOns/Antennas/BY-868-02/BY-868-02.doc
