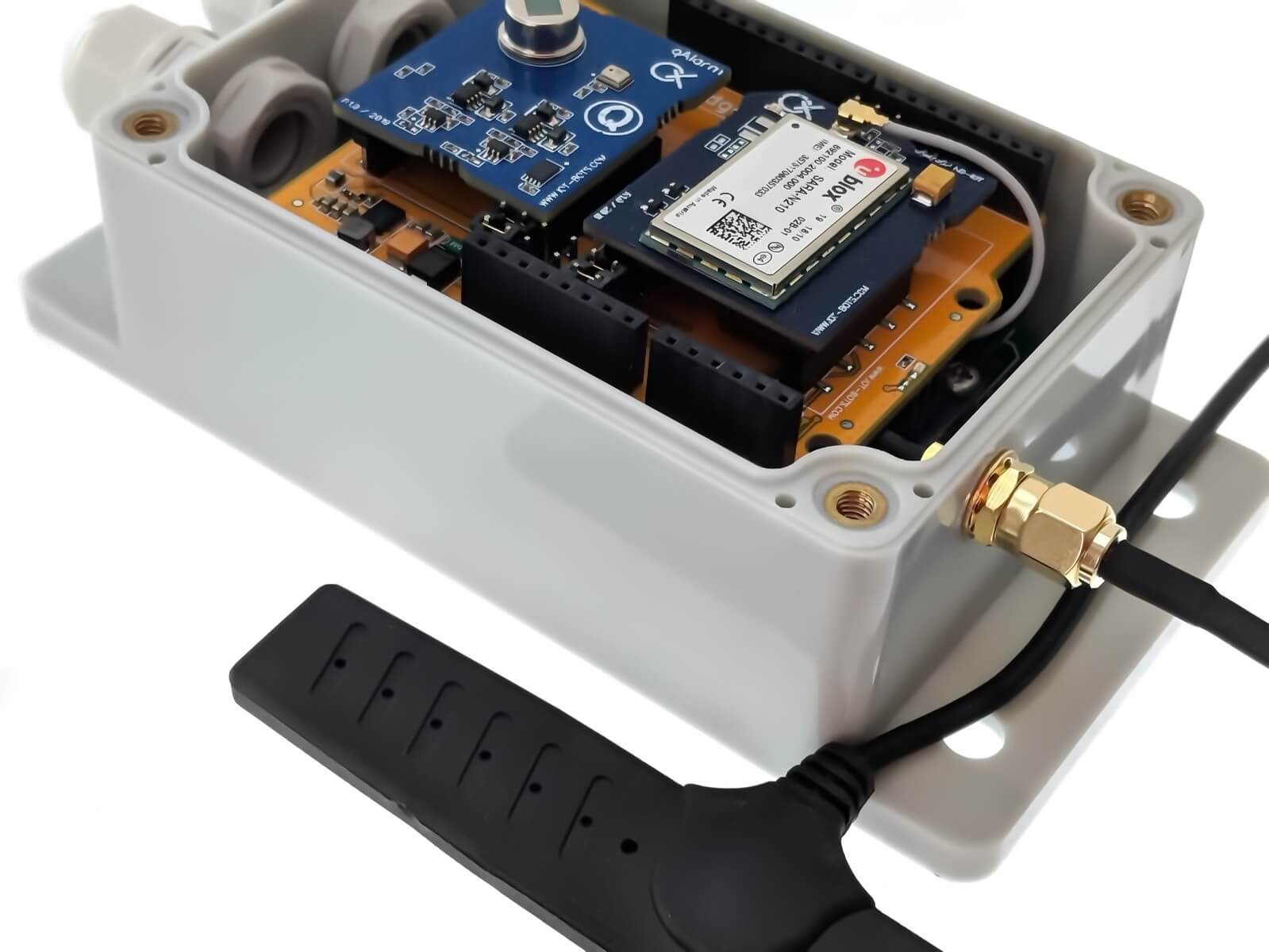

BY-LTE-05-01 is external 4G / LTE antenna. To be used in wide range of LTE / CAT M1 and NB-IOT IOT applications.
BY-LTE-05-01 comes with 3m length cable and SMA Male type connector. 3M Industrial Adhesive at the back of antenna makes it convenient to stick it at some suitable place.
Specification:
- Frequency（MHz）：698-960/1710-2170/2500-2700
- VSWR : ≤2
- Gain（dBi）： 3.5
- Max Input power（W）： 60
- Input Impedance（Ω）： 50
- Polarization： Vertical
- Antenna Length（mm）： 108 x 30 x 7.5
- Cable Length（m/ft）： 3/9.8
- Cable Type： RG174
- Connector： SMA
- Mounting： Adhesive
- Working Temp：-40℃~+85℃
- Storage Temp：-45℃~+100℃
DataSheet: https://github.com/iotbotscom/docs/blob/main/AddOns/Antennas/BY-LTE-05-01/BY-LTE-05-01.doc
