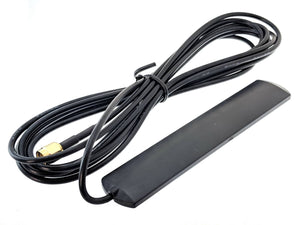

BY-3G-05 is external five bands 3G antenna. To be used in wide range of high speed 3G IOT applications.
BY-3G-05 comes with 3m length cable and SMA Male type connector. 3M Industrial Adhesive at the back of antenna makes it convenient to stick it at some suitable place.
Specification:
- Frequency（MHz）： 850/900/1800/1900/2100
- Bandwidth（MHz）： 136/280
- VSWR: ≤1.5
- Gain（dBi）： 2.15
- Max Input power（W）： 60
- Input Impedance（Ω）： 50
- Polarization： Vertical
- Antenna Length（mm）： 115 x 22 x 4
- Cable Length（m/ft）： 3/9.8
- Cable Type： RG174
- Connector： SMA
- Mounting： Adhesive
DataSheet: https://github.com/iotbotscom/docs/blob/main/AddOns/Antennas/BY-GSM-05/BY-GSM-05.doc
